Introduction
The satellite communication functionality of the Huawei Mate 60 Pro relies on a complex RF system; consequently, a malfunction in the satellite module or RF switch IC can result in a failure to acquire satellite signals or an inability to enter satellite mode. This issue is typically caused by poor soldering on the motherboard, damage to the RF circuitry, physical impact (such as drops), or thermal stress—rather than being a mere software glitch. Repair procedures necessitate a precise diagnosis of the RF signal chain, followed by chip-level repair and component replacement—including the removal of shielding covers and the rework of critical ICs—to fully restore the device’s satellite communication capabilities and overall stability.
Fault Analysis of Satellite Communication Failure
When satellite speaker equipment fails, symptoms also seem to be network instability, inability to detect satellite tv for pc warning, or constant name drops in sensitive symbol areas These issues are usually caused by RF transceiver chip, baseband chiprocessor lines, or interference components or speaker components idle or information communication between modules.
Technicians also look at the fact that heat damage is a common motive, especially if the device has been repaired in the past, where appropriate heat manipulation has been done. The solder joint under the IC may also be weak, requiring re-rounding with high-quality solder balls to restore conductivity. It is essential to figure out whether the problem is software or hardware and take disassembly steps because wrong prediction can cause unnecessary motherboard problems
Preparation and Professional Tool Setup

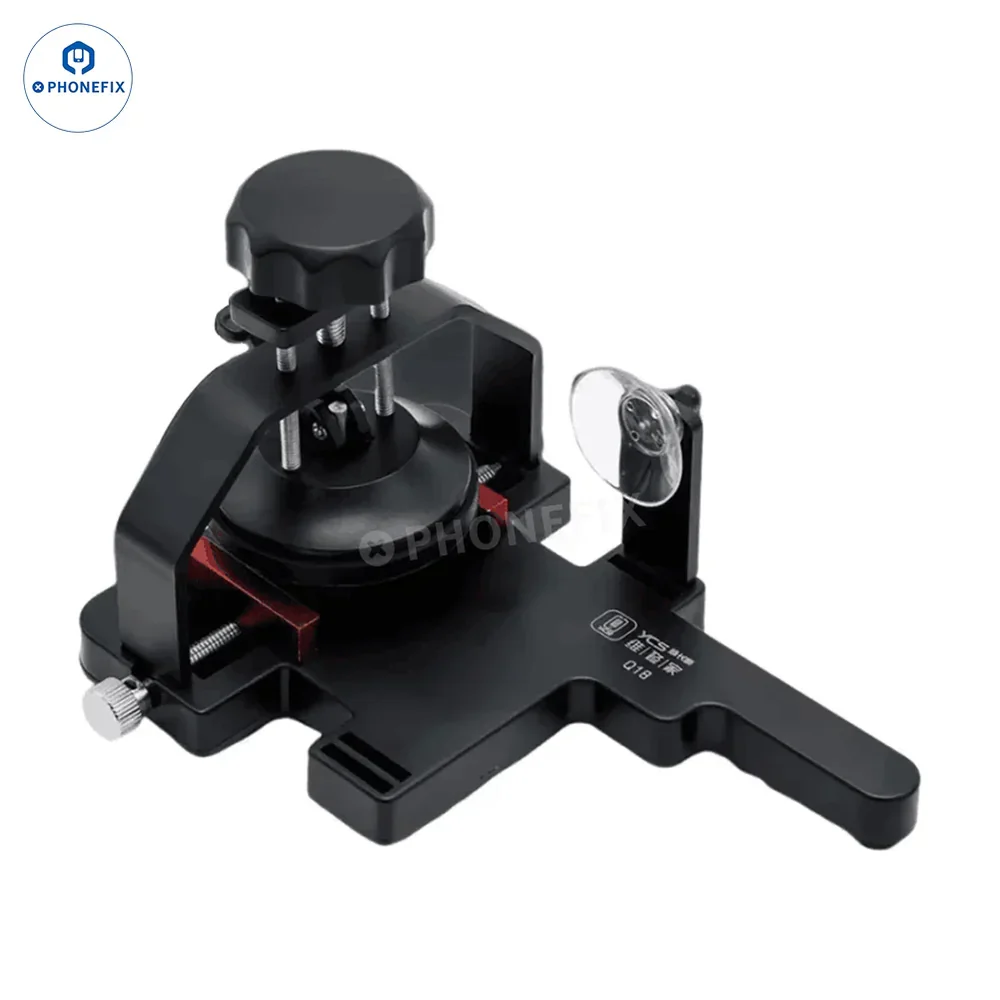

Before restoration begins, a clean and stable environment without additional damage to tactile components is important. The Mate 60 Pro’s motherboard is particularly compact, allowing you to organize devices in advance and create a certain easy workflow. A special disconnect suction cup is required to properly lift the screen assembly without applying uneven stress that could crack the display.
For internal protection at some stage of heating, a ceramic thermal insulation pad is placed under the motherboard to prevent heat transfer to various connectors Technicians assemble precision screwdriver, plastic pry tools, antistatic tweezers and a controlled hot air rework station. Stream selection is equally important; A clean stream is desirable because it improves solder drift without leaving behind corrosive residue that can have an impact on long-term overall performance .
Equipment Mounting and Safe Opening Techniques
Opening the Huawei Mate 60 Pro requires a careful application of heat to the edges of the display, usually using a hot air gun controlled between eighty ° C and ninety ° C This softens the glue, allowing the Dedicated disassembly suction cup to lift the display display continuously. To save damage to internal flex cables, metal tools should be discarded to this extent, and plastic alternatives should be used as an alternative to ensure insulation .
Once installed, the technicians carefully remove the battery before anyone operating the motherboard begins to remove the electrical threat. Antistatic tweezers are used to remove protective plates and connectors. The procedure requires stamina due to the fact that current large smartphones have layered components that can tear without difficulty if pulled incorrectly Proper disassembly ensures that later chip stage protection continues with additional headaches.
Motherboard Repair and Chip Replacement Procedures
Exposing the motherboard allows a faulty transmitter IC to be diagnosed under a microscope. The space is cleaned with isopropyl alcohol before the effluent is applied for rework. Hot air is usually maintained between 330°C and 370°C, depending on vessel sensitivity, to ensure controlled heat distribution. Once the solder joint is softened quietly, the chip is easily removed, avoiding asymmetric forces that would damage the surrounding stresses.
For the restoration, excellent solder balls are used to ensure a strong solid connection throughout the winding. This step is important because satellite TV for computer communications relies on precise signal integrity in the microplatform. A ceramic heat insulation pad allows the temperature of the solid plate to be maintained during soldering, stopping distortion. Once the new or recoated tile is installed, the technician will carefully adjust it under magnification to ensure good positioning before final heating .
testing, reassembly, and final verification
Completing the chip option allows the motherboard to obviously cool down before clearing excess current residue. The board is then reinserted into the device, and all connectors are gently reattached with antistatic tweezers. Power is applied to test an initial startup, and the device is monitored for signal detection and satellite link restoration.
Final validation includes testing of network stability, satellite identification feedback, and IMEI popularity. If all systems function normally, the repair is considered a hit. This step is essential due to the fact that even small discrepancies can argue practice issues throughout soldering. Proper testing ensures long-term reliability and verifies that the repair meets the requirements of experts using superior electronics service structures like diyfixtool.
Conclusion:
Satellite communication failures in the Huawei Mate 60 Pro are frequently caused by issues with the RF switch module, cold solder joints on the mainboard, or damage to high-frequency circuitry; therefore, precise diagnostic localization is required to identify the specific problem, rather than resorting to blind component replacement. The repair process involves non-destructive disassembly, temperature-controlled heating, microscope-assisted micro-soldering, and jumper wire repairs—all executed using high-purity flux and specialized tools to ensure stability. By adhering to standardized procedures for chip-level reconstruction and comprehensive system stress testing, the device’s satellite communication functionality can be fully restored, thereby extending its overall service life.
